1) SEMI AUTO PEAST FILLING MACHINE
Use For : Tea, Pan Masala, Etc.. - Products
Technical Specification
| Style of bag | ANY READY MADE BAGS, BOTTAL, CUP ETC. |
| Weighing method | Syringe pump type filling |
| Filling capacity | 1 to 1000 Ml. (max) |
| Packing capacity | 5 TO 30 per minute (max) |
| Dimensions | 750mm W x 900mm D x 800mm H (max) |
| Power | 1 PHASE / 230V OR 3 PHASE / 440V |
| Motor req. | 1/2H.P / 1440 RPM (UP TO 250 ML.) 1 H.P. / 1440 RPM (UP TO 1000 ML.) |
| Weight | 70 kg. To 140 Kg. |
| Use in machine | Cosmetic, 'c' oil, Crem Or Peast type etc. similar products. |

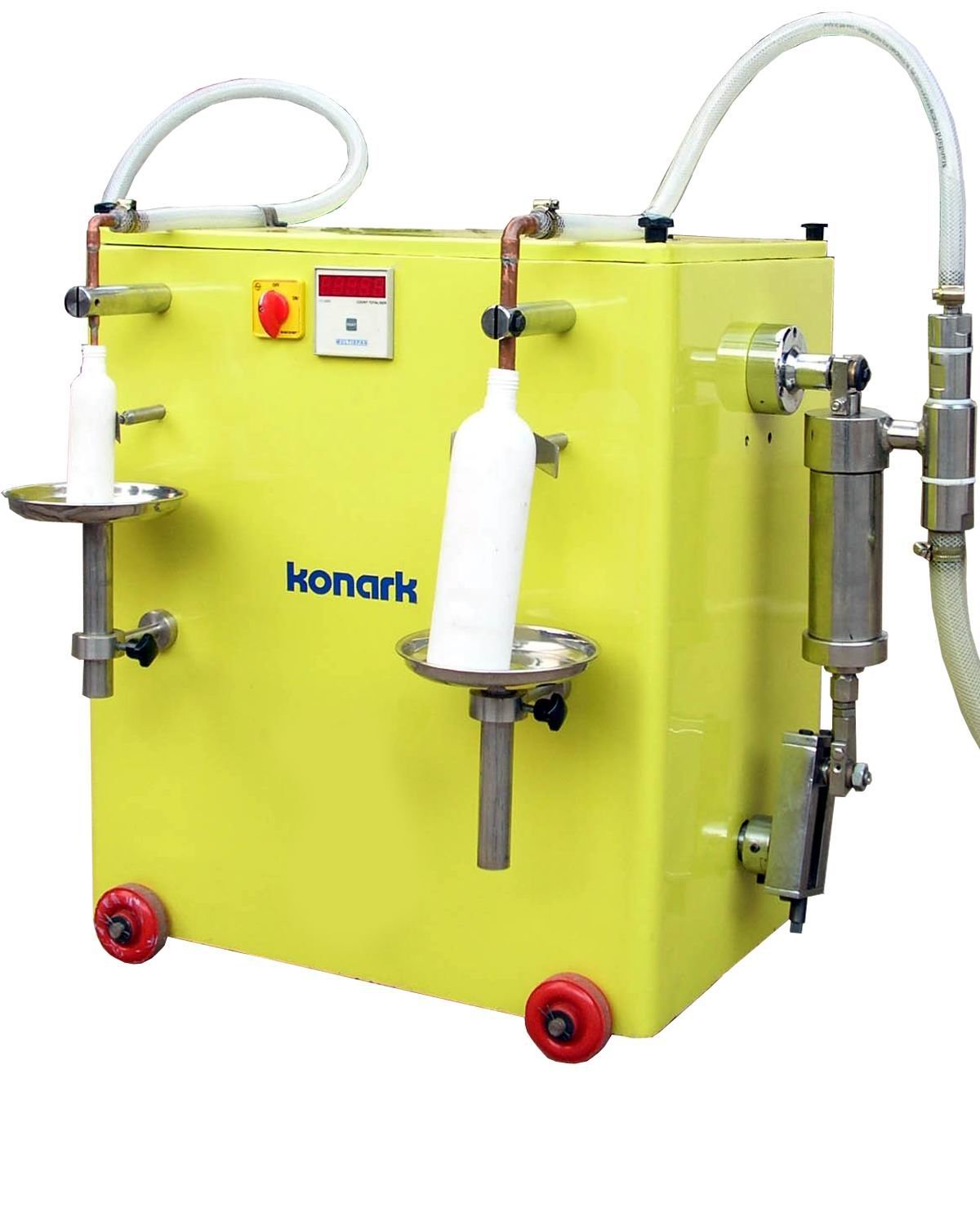

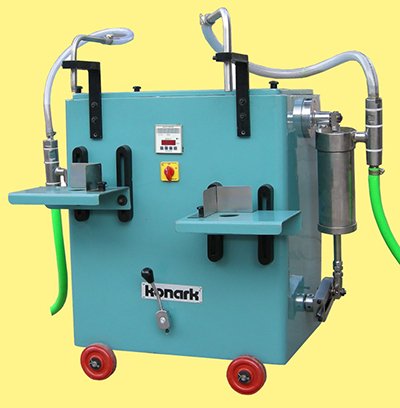

2) SEMI AUTO LIQUID FILLING
USE FOR : Hair Oil, Shampoo, Groundnut Oil, Lubricants Oil, Cold Drinks, Milk and Similar Products
Technical Specification
| Model | SEMI AUTO LIQUID FILLING MACHINE |
| Metering method | SIRINGES |
| Metering range | 1-10 ml. 5-30 ml. 20-50 ml. 30-100 ml. 100-500 ml. 250 - 1000 ml |
| Filling speed | 5-20 BPM |
| Style of beg | ANY TYPE READY MADE POUCH OR BOTTLE ETC. |
| Power supply | 220V , 1440 RPM |
| Machine weight | 125kg to 180 kg. |
| Machine dimension | 450L X 350W X 650H - UP TO 100 ML. 550L X 450W X 900H - UP TO 1000 ML |

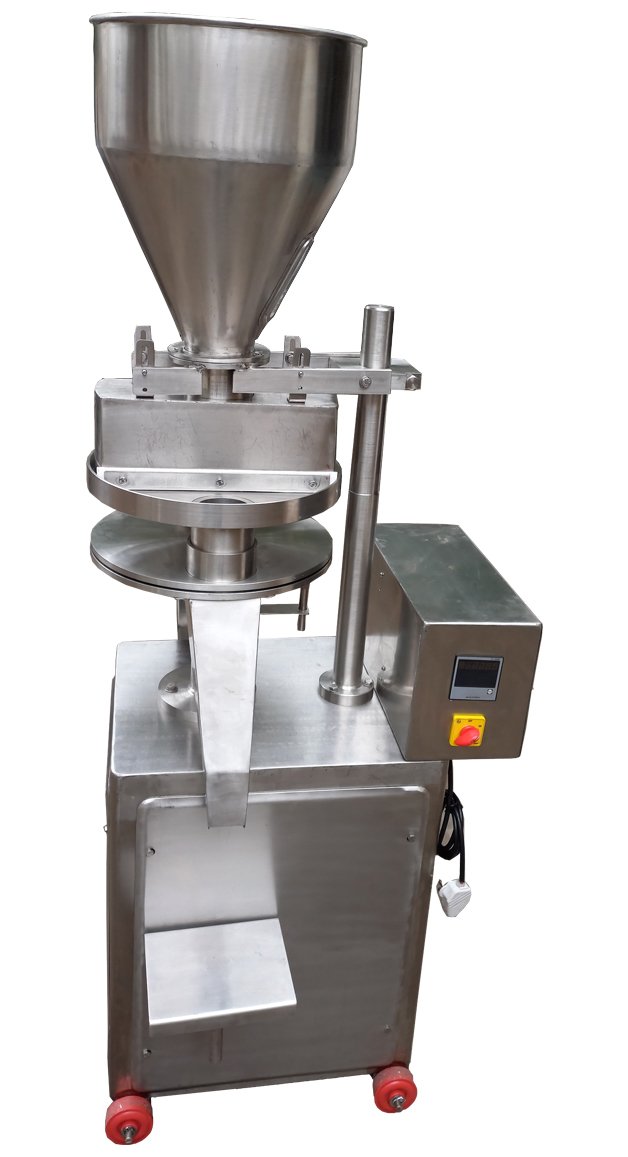

3) SEMI AUTO FREE Flouring POWDER & Granules FILLING
USE FOR : This Semi Automatic Filling Machine is use to pack Tea, Tobacco, Spices, Pan masala, Namkeen Mixture, Cearials, etc.
Technical Specification
| Cap. | 50 gm. to 250 gm. and 200 to 500 gr. (As per Material). |
| Quantity | 10 to 17 Bags |
| Power | 1/4 HP. Single Phase, 230 V. 1440 RPM. |
| Power | Depth - 770mm |
| Width | 590mm |
| Height | 1490mm |
| Weight | Approx : 220 Kgs |
| Packing Material | Any type of ready-made bags can be used. |
| Sample Availability | Yes |
| Supplier Product Code |

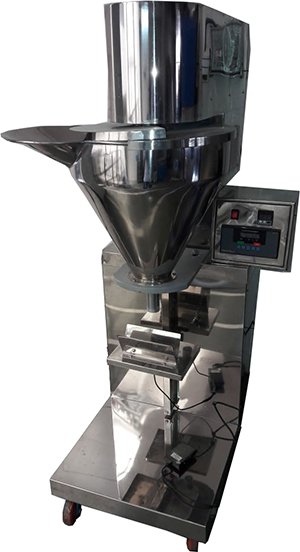

4) AUGAR FILLER MACHINE
USE FOR : Any Type Fine Powder Spices, Besan, Atta, Mendo, Turmeric, Mirchi Powder And More Products
CAPACITY : 10 Gram To 10 Kg. With Weigher Sisteme
ACCURACY : 2.5% Approx Depending On Material
Technical Specification
| Packing Capacity | Per Minute 6 Pouch (depending on meterial) |
| Weight Capacity | 250grm, 500grm. 1 kg. |
| Machine operate | Load-cell based weight control |
| Accuracy | 2.5% approx depending on material |
| Power | 230 Volts 1 Phase |
| Motor | 1 H.P. 230 Volts with variable drive for auger 1 H.P. 3 phase for sturel with gear box |
| Machine Size | 750L X 625W X 1750H MM |
| Machine Weight | 150 Kg. approx. |
