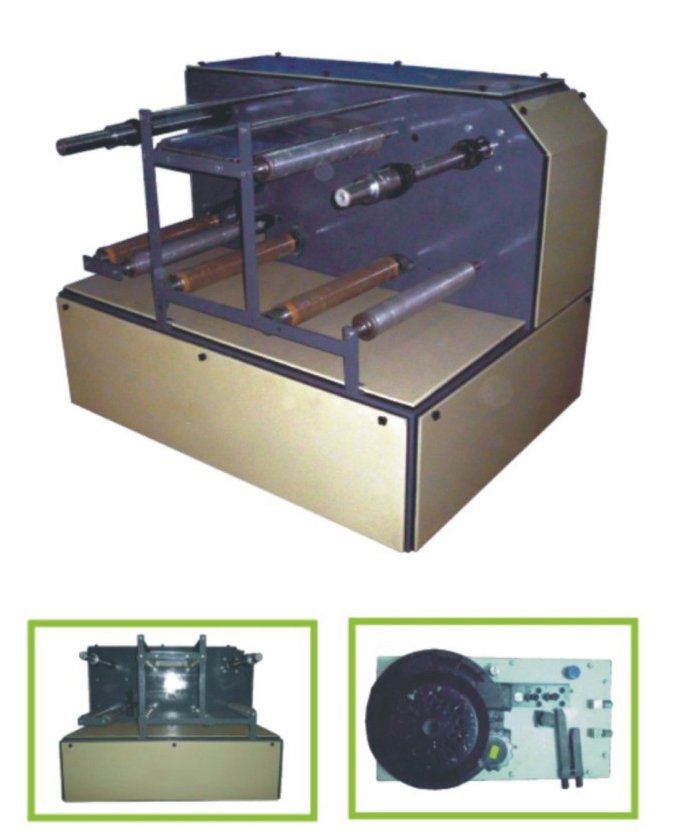

1) ROLL RE WINDING MACHINE
Use For : Roll Betch Printing For Inject Printer
Specification
| AC drive | 2 hp with single phase |
| AC Motor | 2 hp with 1500 rpm |
| Max Web Width | 500 mm |
| UW/RW Shaft | Tapper cone/ Expander Roll |
| Max. Design Speed | 150 mpm |
| Rewind / Unwind Code Dia. | 76 mm std |
| Web Width | Range 200-500 mm |
| Max. Unwind/Rewind Reel Dia. | 400 mm |
| Line Speed Control | Automatic |
| APPLICATION | Online Printing of Mfg. Date, Exp Date, B. No. etc For Paper Film & Foil. |
| SILENT FEATURES | Cantilever Design with Minimum Power and Labor. Hydraulic Web Alinger. Tension Controlled by Manually Hand Break. Torque Control Potentiometer. Provision for Incorporating Ink Jet Printing System. Heavy duty Base Structure for Vibration Free Working. Guide Roller With Rubber Cork Material(Avoid Slippage). |
