1) Hacksaw Machine

Product Specification

Filling Range	100 TO 1000 Grams
Filling Speed	1500 to 4000 Pouches per Hour
Pouch Material	Heat Sealable Flexible Laminated Paper
Power	230 V Single phase 50-60 Hz
Heater	Round type 230 Watts Cartridge type 230 Watts
Motor	230 watts 1/2 H.P. Single phase 1440 RPM 110 watts 1/8 H.P. Single phase 1440 RPM
Pouch Size	Width :- 25mm To 250mm Bag Length :- 25 to 400mm
M/C. Size	Depth - 980, Width - 750, Height - 1660mm
Weight	310 Kgs. Approx

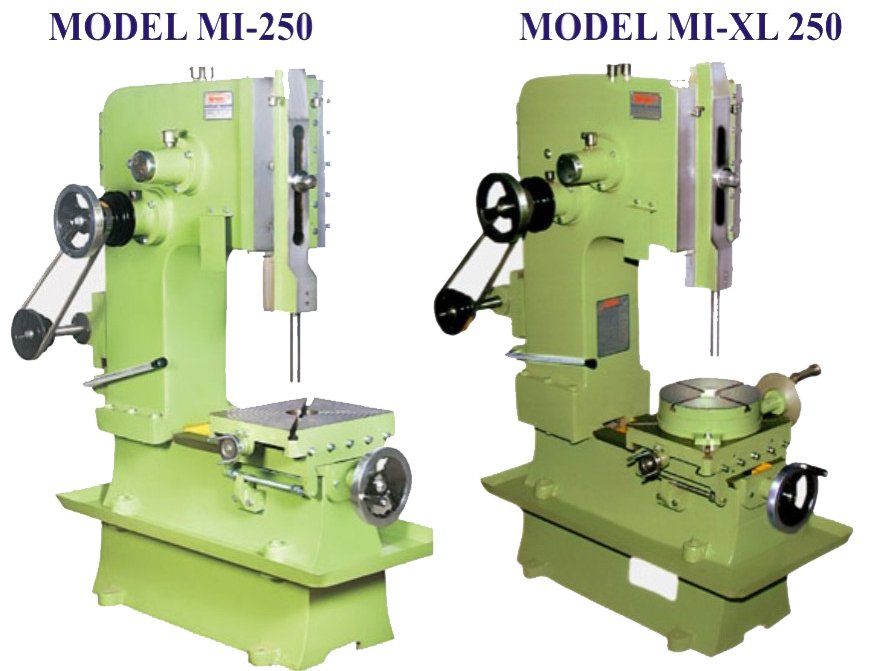

2) Slotting Machine

MODEL	MI-250	MI-XL 250	M-150
Working Stroke	10mm TO 250mm	10mm TO 250mm	10mm TO 150mm
Longitudinal Traverse	245mm	245mm	125mm
Cross Traverse	85mm	85mm	75mm
Speed Adjustment	3 Speed	3 Speed	3 Speed
Ram Adjustment	UPTO 250mm	UPTO 250mm	UPTO 150 mm
Motor Required	1.5 H.P.	1.5 H.P.	1.5 H.P.
A- Distance from Body to Ram	310mm	310mm	200mm
B- Distance from Body to T slot Slide	370mm	370mm	330mm
C- T-SLOT Table Size	280mm X 330 mm	280mm X 330 mm	280mm X 330 mm
